Filtering blebs structure and function evaluation using optical coherence tomography

Supplementary Files

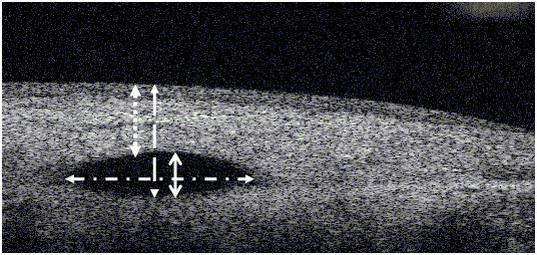

Figure 1 Bleb parameters measured in the study
Figure 2 IOP reduction 12 months after trabeculectomy
Figure 3 IOP changes after trabeculectomy dependening on bleb wall morphology

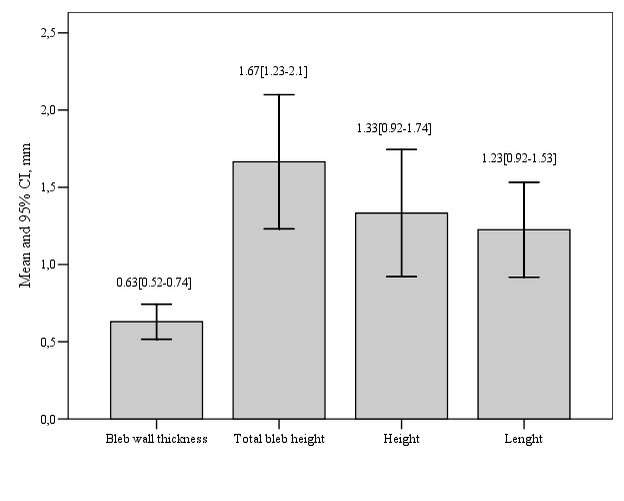

Figure 4 Bleb structure measurements (Mean and 95% CI)

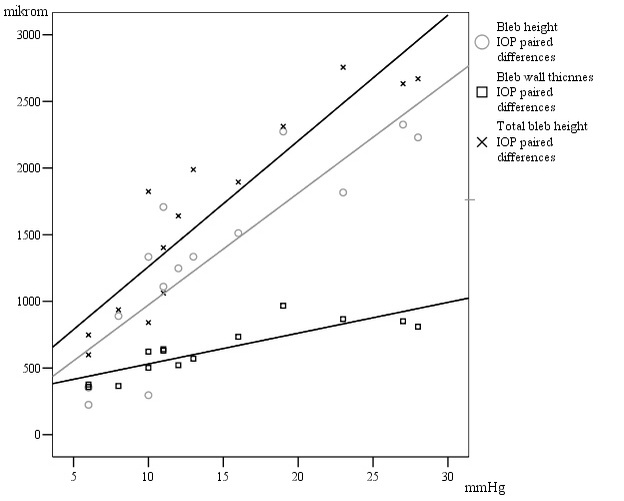

Figure 5 Scattergram showing the relationship between the changes of IOP and bleb structure parameter
Table 1 Correlation of bleb wall morphology with bleb functions at 12 months after surgery

How to Cite

Paulaviciute-Baikstiene D, Vaiciuliene R, Januleviciene I. Filtering blebs structure and function evaluation using optical coherence tomography. MAIO [Internet]. 2016 Dec. 15 [cited 2022 Jun. 25];1(2):10-9. Available from:

Copyright notice

Authors who publish with this journal agree to the following terms:

  1. Authors retain copyright and grant the journal right of first publication, with the work twelve (12) months after publication simultaneously licensed under a Creative Commons Attribution License that allows others to share the work with an acknowledgement of the work’s authorship and initial publication in this journal.

  2. After 12 months from the date of publication, authors are able to enter into separate, additional contractual arrangements for the non-exclusive distribution of the journal's published version of the work (e.g., post it to an institutional repository or publish it in a book), with an acknowledgement of its initial publication in this journal.


AS-OCT; intraocular pressure; filtering bleb; primary open-angle glaucoma; trabeculectomy


Purpose: To assess the ability of a noncontact optical coherence tomography to evaluate the morphological features of filtering blebs one year after glaucoma surgery.

Design: Prospective study.

Methods: Eighteen patients (18 eyes) with diagnosed primary open-angle glaucoma (POAG) assigned for trabeculectomy were included in the 12-month study carried out in the Eye clinic of the Lithuanian University of Health Sciences. All participants underwent trabeculectomy with 5-fluorouracil (5-FU). Bleb function was considered to be successful if the intraocular pressure (IOP) was ≤ 18 mmHg without glaucoma medications and a limited success if: 18 < IOP ≤ 21 mmHg with or without glaucoma medications at 12 months after surgery. The filtering blebs were imaged by anterior segment optical coherence tomography (AS-OCT) to evaluate the bleb wall reflectivity and measured bleb structures 12 months after trabeculectomy. Level of significance: p < 0.05 was considered significant.

Results: The mean preoperative IOP was 25.7 (6.5) mmHg and the mean number of topical glaucoma medications was 3.0 (1.2). After surgery the mean IOP was 13.8 (3.4) mmHg and glaucoma medication was 0.3 (1.0) (Wilcoxon test, p < 0.001). Analyzing bleb morphology and bleb function it was found that with uniform wall reflectivity 0 out of 3 eyes (0%) had successful bleb function and with multiform wall reflectivity 14 out of 15 eyes (93.3%) had successful bleb function 12 months after surgery (p = 0.005).We found positive correlation between IOP changes and bleb wall thickness, height of internal fluid-filled cavity (bleb height) and total bleb height (r = 0.875, 0.897, 0.939, p < 0.001).

Conclusion: AS-OCT is a useful device to assess the structure of the filtering bleb. Larger internal fluid-filled cavity, total bleb height, bigger bleb wall thickness and multiform bleb wall reflectivity were found to be good indicators of bleb function.
